Home > Capacitive Membrane Switch >

ITO Conductive Capacitive Touch Sensor Switch Membrane For 3C Item

Product Categories
WenYI Electronics Electronics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

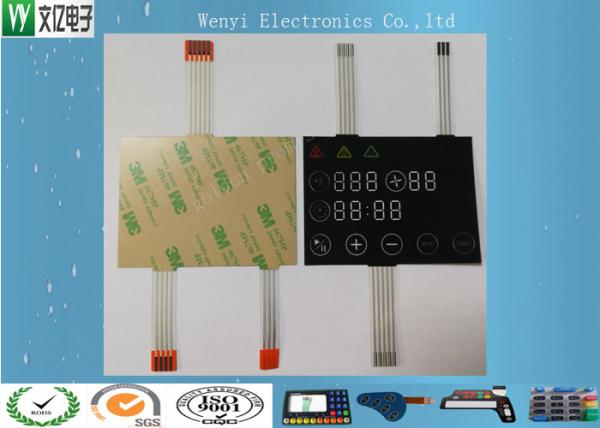

ITO Conductive Capacitive Touch Sensor Switch Membrane For 3C Item

Brand Name : WenYI

Model Number : GPI-Flex-C-005

Certification : RoHs, SGS, ISO9001

Place of Origin : Made in China

MOQ : 10 pcs / order

Price : Negotiable

Payment Terms : D/P, L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 1000,000 pcs / Month

Delivery Time : 8-12 working days

Packaging Details : ploybag, carton

circuit type : ITO Membrane Flexible Circuit

sensitivity : less than 0.5 Micro-sencond

working method : capacity touch

Application : Touch Sense Keypad

Back adhesive : 3M 467

Life Span : over 5 million operation life times

Material : PC, Acrylic, Glass

Contact Now

ITO Conductive Capacitive Touch Sensor Switch Membrane Flexible Circuit Long Life Span

Item decription:

5milion times life span ITO Condutive Membrane Touch Sense Capacity Membrane Siwtch

working type: capacity Sense

Circuit type:　ITO Touch sense

Application: Capacity touch Sense keypad

Product Characters

  1. Custom made OEM/ODM
  2. PET based Circuit Combine with Silicone Keypad
  3. color keys screen print are available
  4. Withstand millions of cycles
  5. Perfect exterior
  6. Anti-dust, anti-oil, waterproof

Application

  1. *Medical Equipment Device
  2. * Telecommunications apparatus
  3. * Digital Control keypad
  4. * Household appliances

Technical specification:

Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability customer design(OEM), own design(ODM),
wire lead resistance: ＜1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0～30V DC Operation Temperature: -40℃～70℃
Rated Voltage: ＜50V, DC Operation Humidity: at40℃,＜98%RH
Insulation resistance: ＜100MΩ,250V DC Dome springback time: ＜5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
MOQ 20 pcs / lot, might be different as per specification

ITO Conductive Capacitive Touch Sensor Switch Membrane For 3C Item


Product Tags:

ITO capacitive touch membrane



3C Item capacitive touch sensor switch



ITO capacitive touch sensor switch


Wholesale ITO Conductive Capacitive Touch Sensor Switch Membrane For 3C Item from china suppliers

ITO Conductive Capacitive Touch Sensor Switch Membrane For 3C Item Images
